Glass Processing Center
Product Description: Applicable materials FRP, resin, foam, artificial stone, rubber and other composite materials, natural materials stone, solid wood, jade and so on can be used

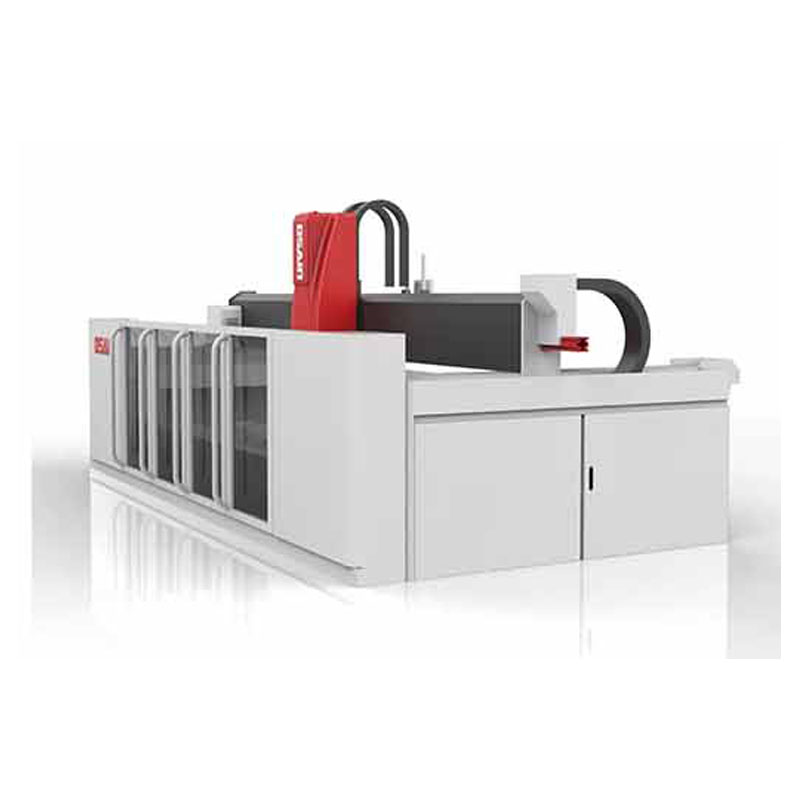

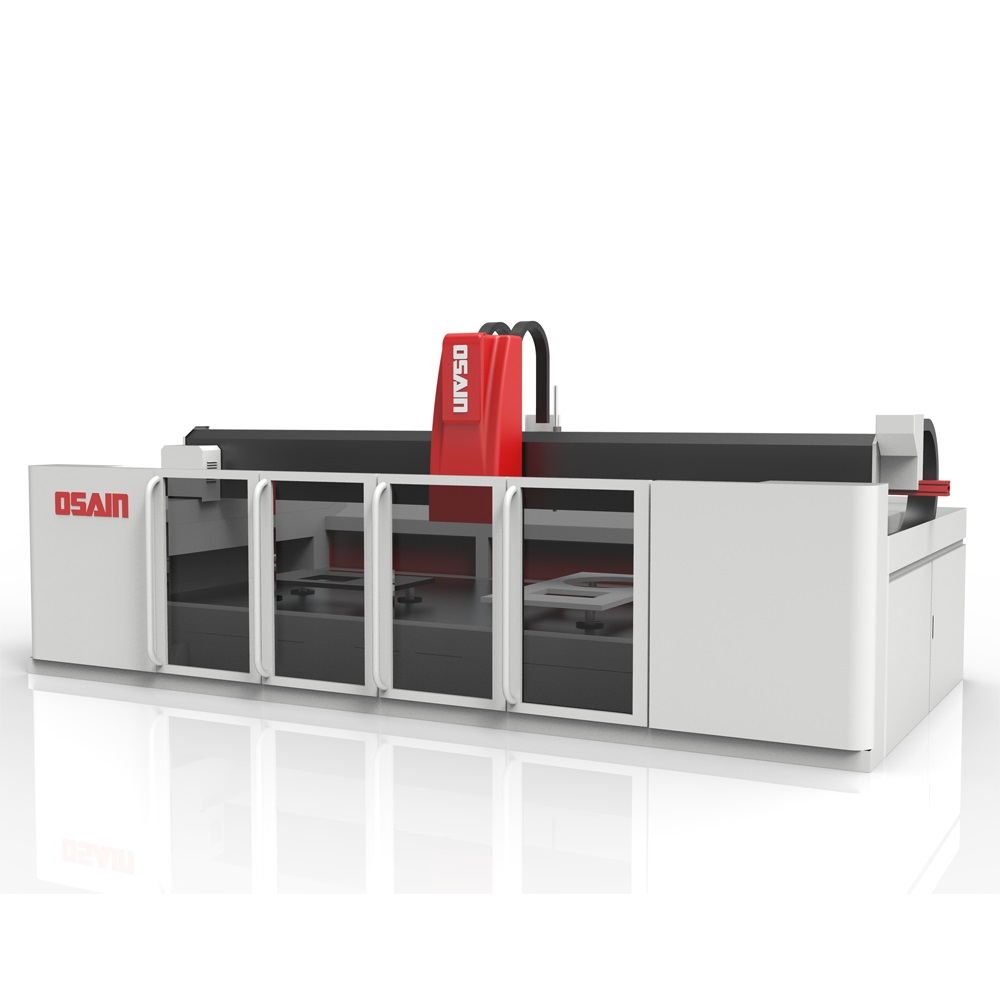

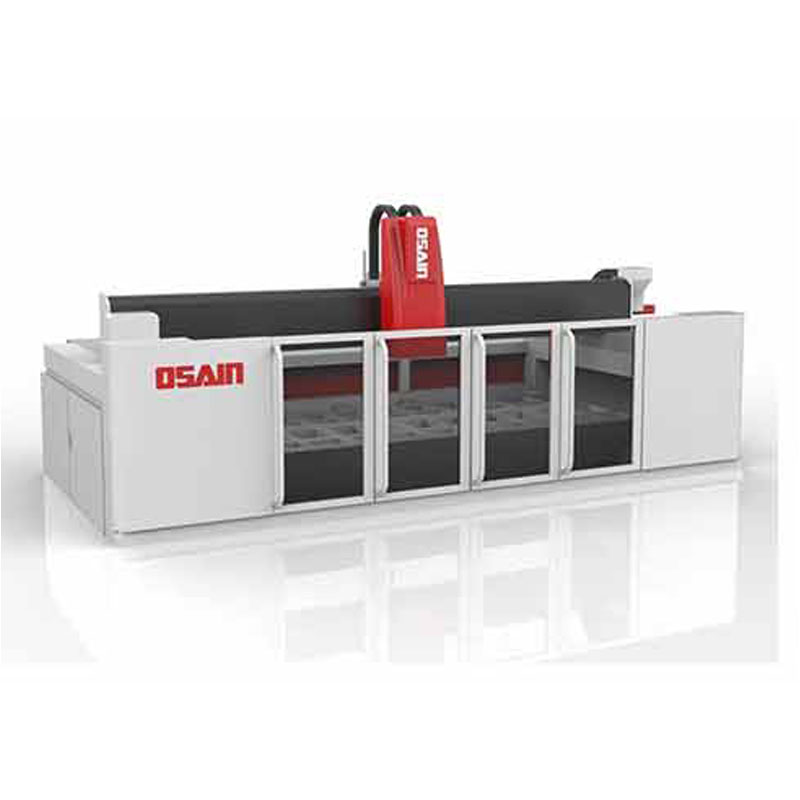

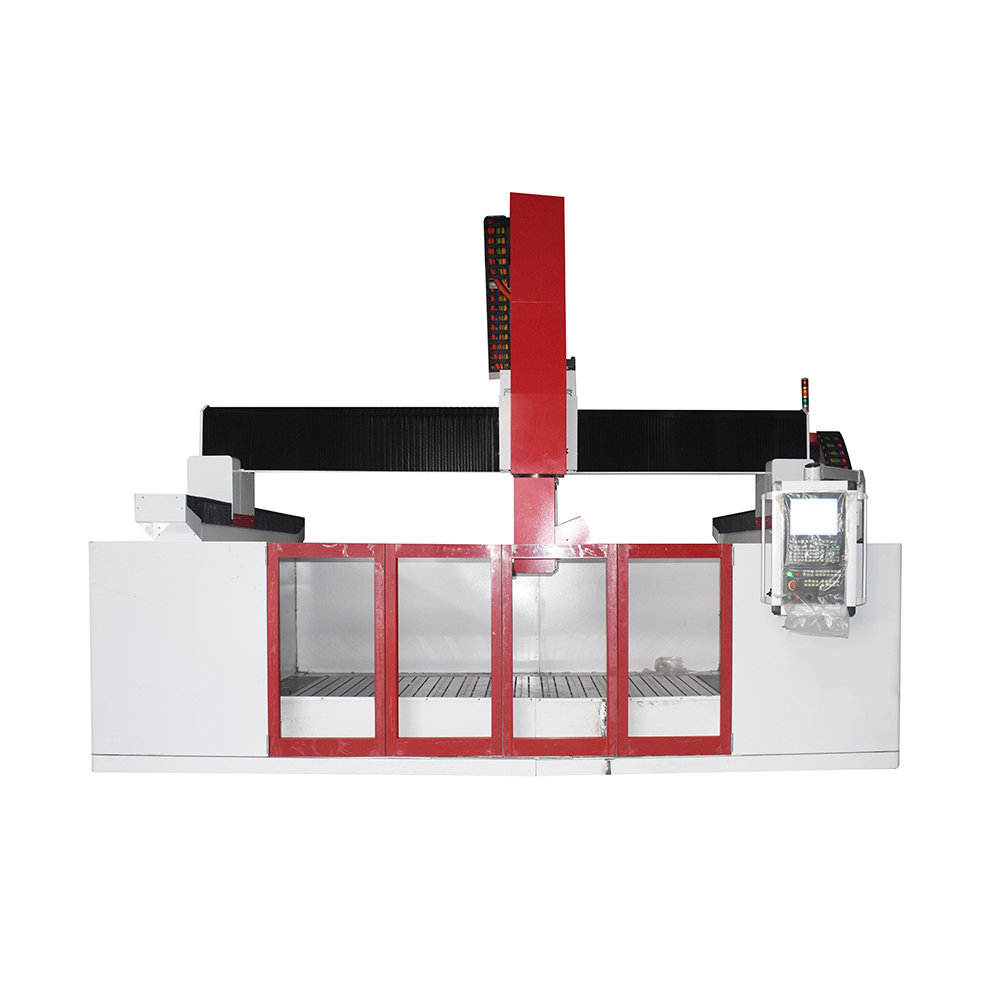

product display:
Glass machining center is a kind of high efficiency and high precision glass processing equipment, which can process glass quickly and accurately. The following is an introduction to the principle, components, application industry and products that can be processed in the glass machining center.
I. principles
Glass machining center is a kind of machine tool which runs under the control of numerical control (CNC) system. Its working principle is to input the machining pattern into the machine tool control system through programming, and then the machine tool automatically completes the machining according to the program. In the process of machining, the glass workpiece is fixed on the worktable, and the motor drive tool automatically and quickly cuts, carves and grinds the glass workpiece, and finally realizes the fine machining of the glass.
II. Components
Glass machining center is usually composed of machine tool base, numerical control device, machining platform or feed table, frequency converter, spindle box and so on. The CNC device is the core component of the glass machining center, which is responsible for the interconnection between the program and the machine tool, and the spindle box is responsible for driving the cutting tool for machining.
III. Application industry
Glass machining centers are widely used in the following industries:
Construction industry
Furniture industry
Hardware industry
Art industry
Interior decoration industry
IV. Products that can be processed
Glass machining centers can process a wide range of products, such as:
Glass door, window, curtain wall
Glass home ornaments, furniture glass
Glass bottles, cups, cutlery, etc
Glass works of art, sculptures and decorations
Glass electronic products panel, etc.
In a word, the application field of glass machining center is very wide, which can realize the high efficiency and fine processing of glass and its products, improve the processing efficiency and quality of products, and meet the processing needs of various industries.
Product parameters:
Technical indicators |
JX3015 |
Maximum machined area of XY plane |
3000mm*1500mm |
Spindle inner taper hole |
BT40 |
Spindle motor |
7.5KW |
Servo Motors by Axis (Yaskawa, Japan) |
850W |
Maximum spindle speed |
12000RPM |
Woking environment and conditions |
|
Ring pit temperature |
-15-45℃ |
Relative humidity |
< 7 0 % No condensation |
Surrounding environment |
Ventilation, No major impact |
Supply voltage |
AC380v±5% |
Power frequency |
50HZ |
Work consumption |
12KW |

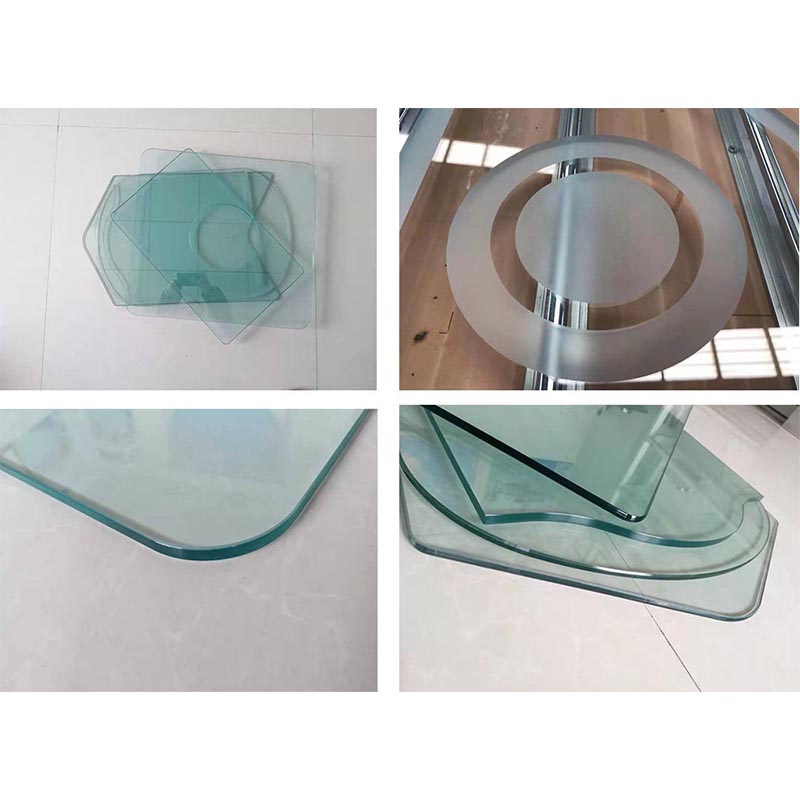

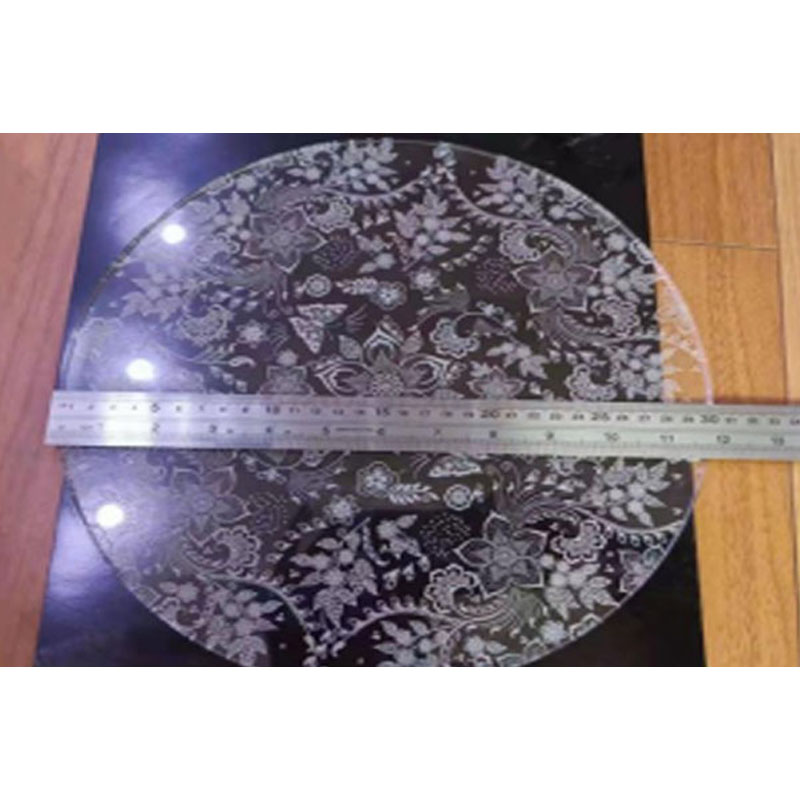

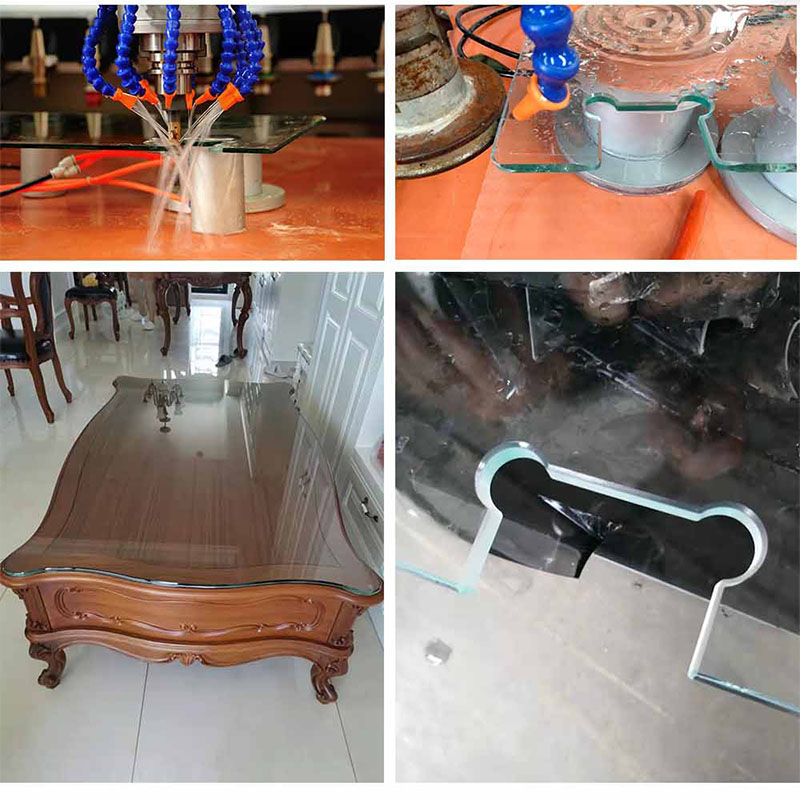

Glass processing finished product display
Video display:
