300X400mm Casting Iron Frame Cnc Milling machine free shipping by sea

300X400mm Casting Iron Frame Cnc Milling machine free shipping by sea

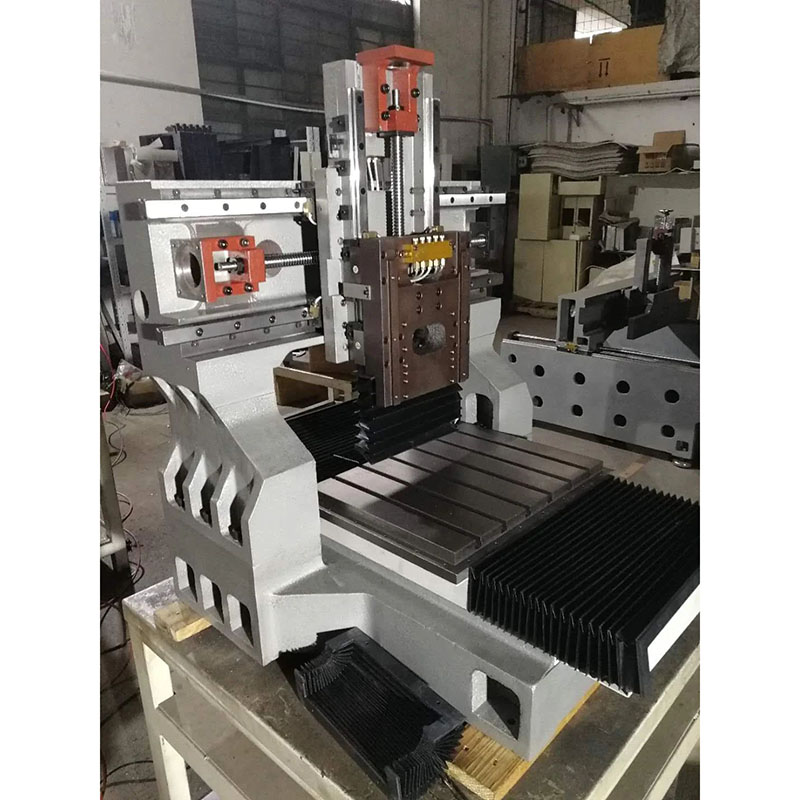

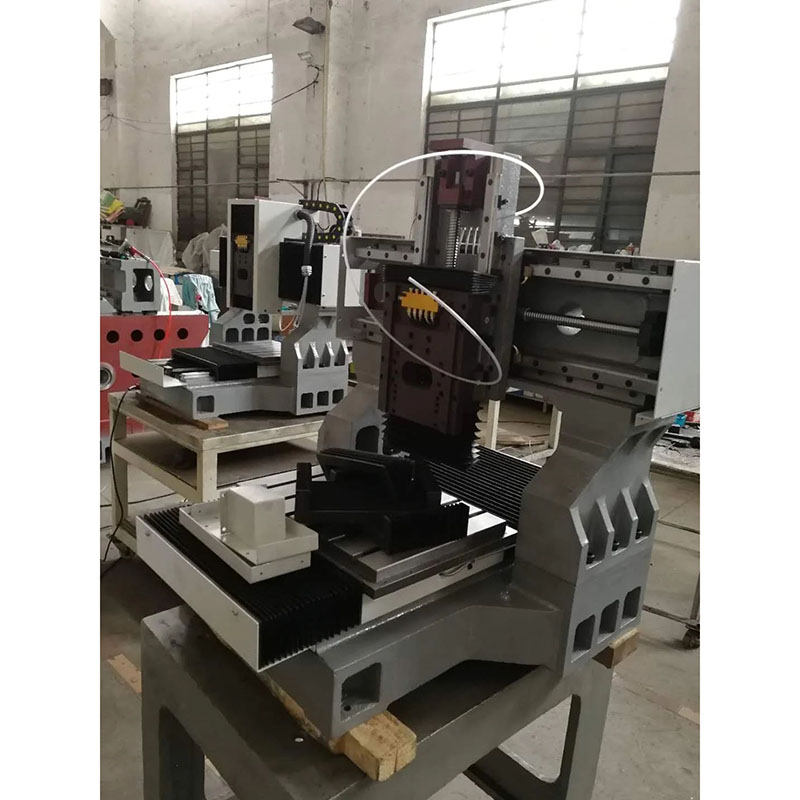

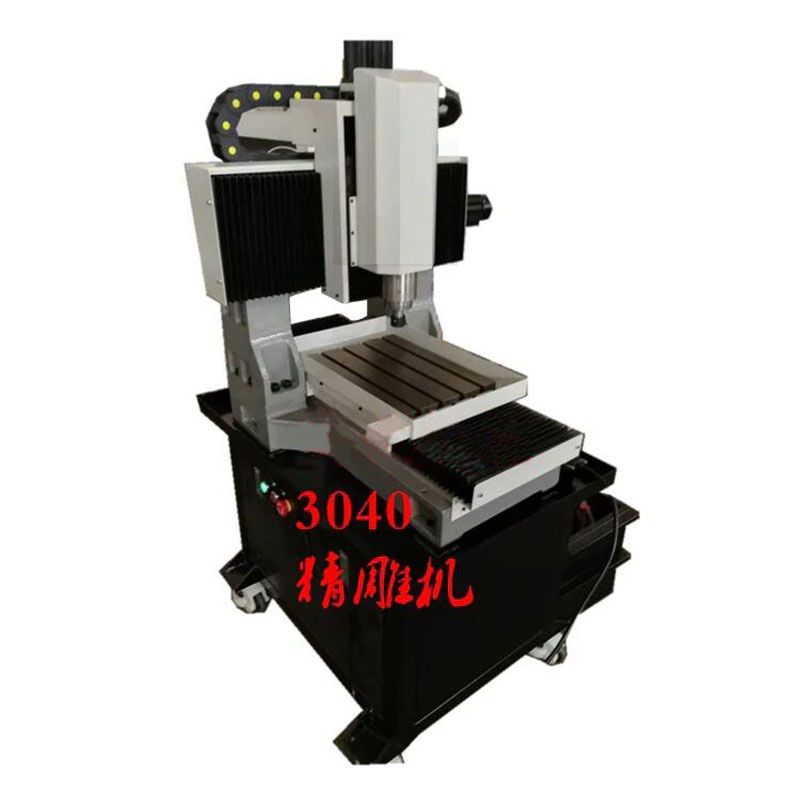

product display:

product display:

specifications.

DESCRIPTION
Items Details Configurations
XYZ Stroke 300*400*170mm
XYZ Guide Rail HIWIN XYZ20 guide rail
XYZ Ball Screw TBI 1605 C7 ballscrew
Worktable Size 370*450mm
Dimension 630*940*1600
Frame material HT250 grey cast iron
XY Verticality ±0.01mm/200mm
ZY Verticality ±0.01mm/200mm
XZ Verticality ±0.01mm/200mm
Table Flatness ±0.01mm/200mm
Repeatability 0.01mm
CNC Controller DM500
Z axis motor 57 stepper motor 2N.M
XY axis motor 57 stepper motor 2N.M
Spindle 800W 24000RPM
Spindle VFD 1000W
Cutting Coolant Water pump
Spindle Coolant Water pump
Support software MasterCam, Powermill,UG etc
Cutting Materials Brass,Steel,Aluminum,Pvc etc
