automatic cnc router with 16pcs tool changer for kitchen cabinet making-Jinan Jiaxin CNC equipment Co., Ltd.

automatic cnc router with 16pcs tool changer for kitchen cabinet making

Model H2-16 X-Y-Z axis working area 1,220 x 2,440 x 200mm Machine size 2,100 x 3,800x2300mm Repositioning resolution 0.02mm X-Y movement rack and pinion, gear drive Z movement ball screw drive/Taiwan Guide Linear 25 square/Taiwan Max. speed

Contact for quote

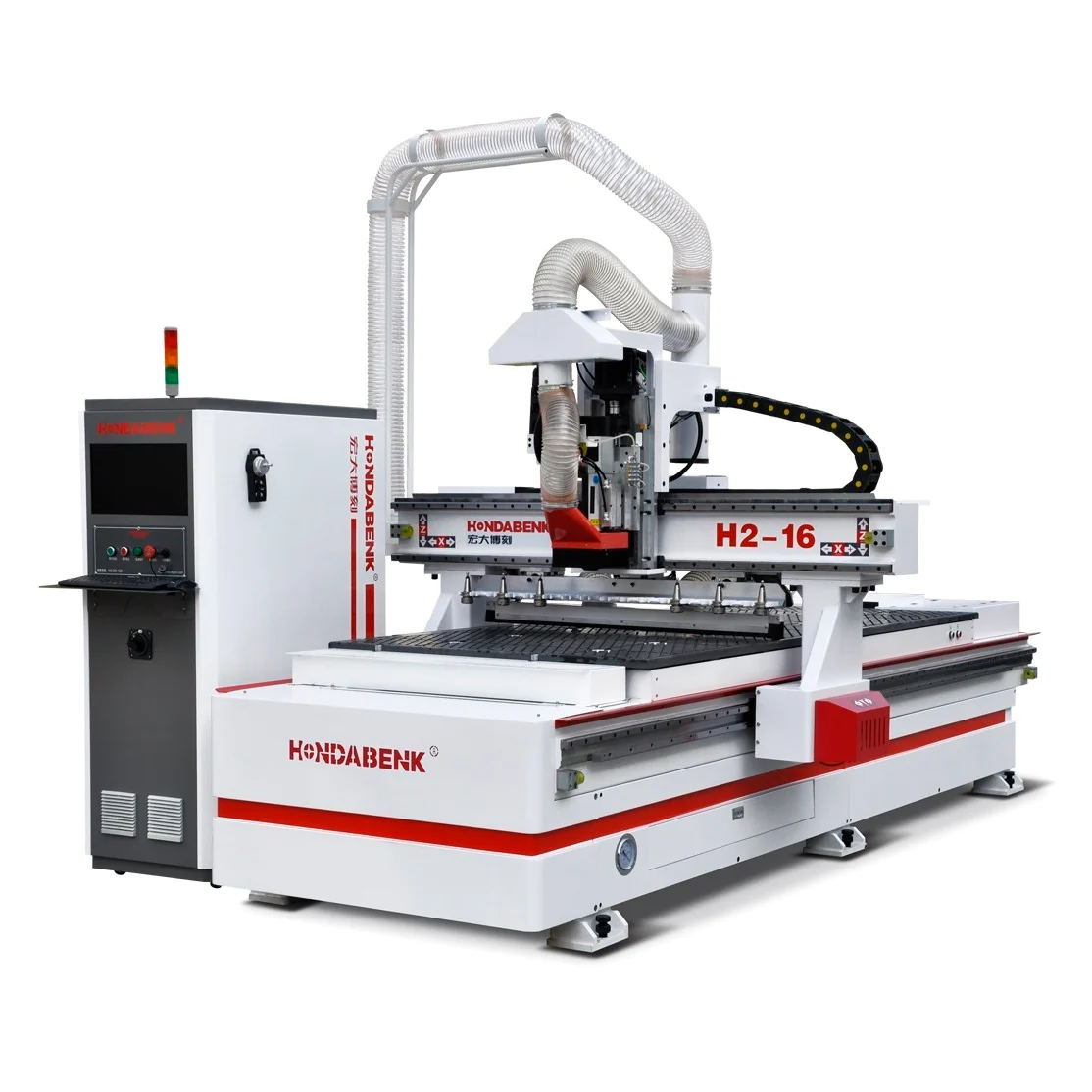

product display:

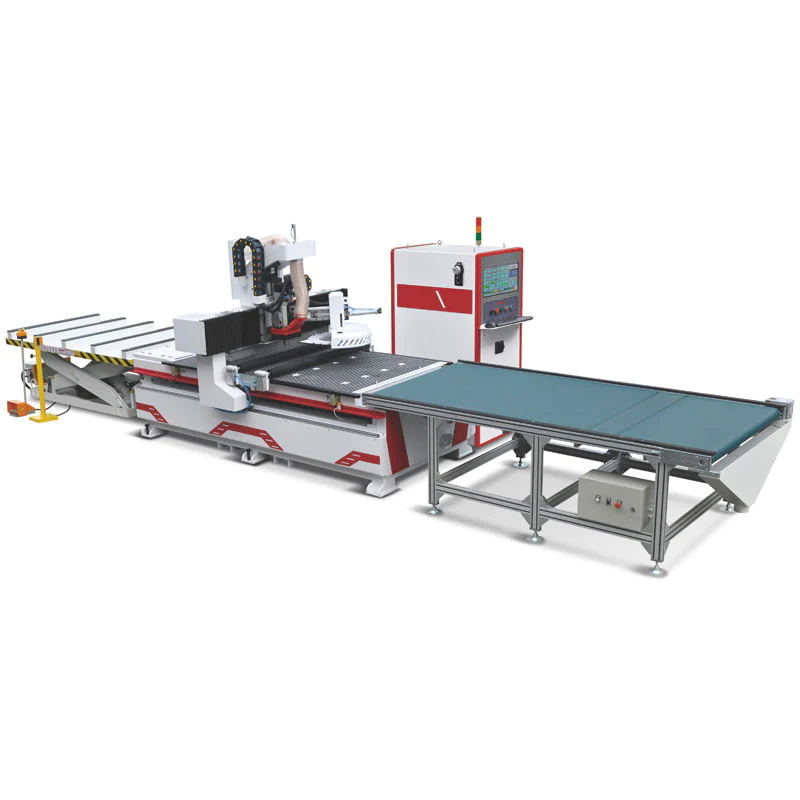

loading and downloading table is optional

Model	H2-16
X-Y-Z axis working area	1,220 x 2,440 x 200mm
Machine size	2,100 x 3,800x2300mm
Repositioning resolution	0.02mm
X-Y movement	rack and pinion, gear drive
Z movement	ball screw drive/Taiwan
Guide Linear	25 square/Taiwan
Max. speed	45,000mm/min
Max. cutting speed	35,000mm/min
Spindle power	9.0KW air cooling atc spindle
Auto tool changer	Linear type 16pcs
Spindle speed	24,000rpm
Inverter power	7.5kw
Drive motors	YASKAWA servo motor 850W
Working voltage	AC220V/380V/50-60Hz, 3-phase
Command code	G code
Computer interface	USB 2.0
Table	vacuum table with 5.5kw pump
software compatible	VCarve/UcanCAM/ArtCAM,etc.
controller	Syntec 6MB
pop up pins	x-axis 2 pcs y-axis 3 pcs
