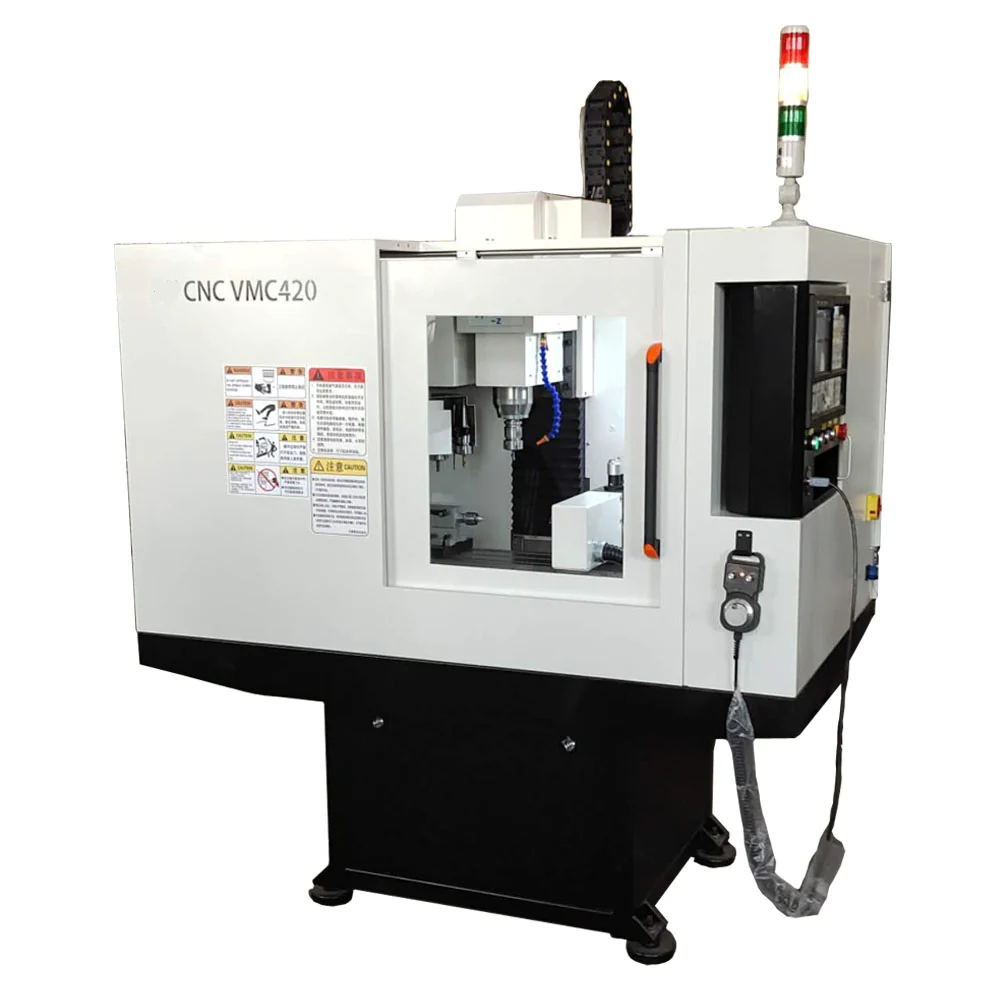

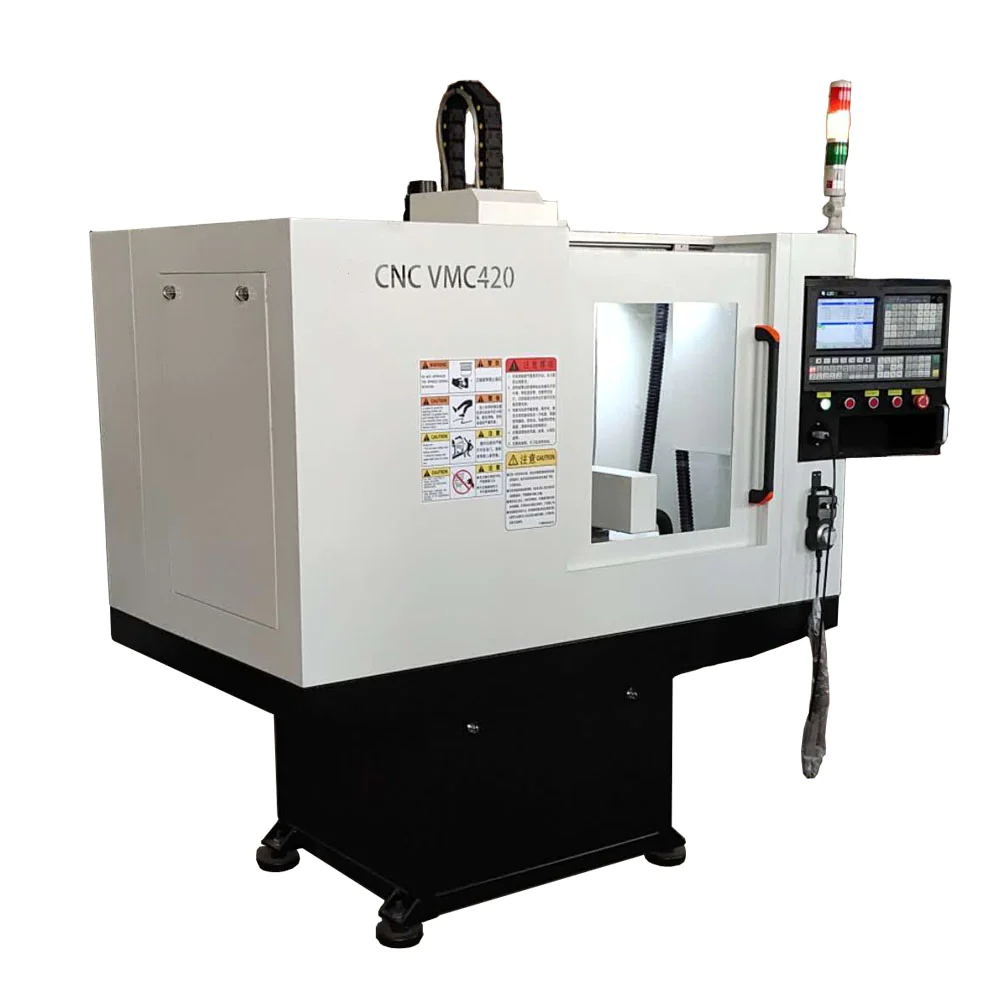

VMC420 Veritcal Cnc Milling Machine Mini Cnc Mill For Aluminum and Steel

VMC420 Veritcal Cnc Milling Machine Mini Cnc Mill For Aluminum and Steel

product display: Technical Parameters XYZ Stroke: 400*200*350mm XYZ Rail:Hiwin XYZ20 guide rail XYZ Ball Screw : TBI XYZ2005 Worktable Size: 590*178mm Machine Dimension: 1.6*1.2*1.8m X/Y/Z Verticality:+/- 0.01mm/200mm Repeatability:0.01mm C

product display:






Technical Parameters

XYZ Stroke: 400*200*350mm XYZ Rail:Hiwin XYZ20 guide rail
XYZ Ball Screw : TBI XYZ2005
Worktable Size: 590*178mm
Machine Dimension: 1.6*1.2*1.8m
X/Y/Z Verticality:+/- 0.01mm/200mm
Repeatability:0.01mm
CNC Controller: KYCNC 1000MC
Z axis Motor: 750W Servo With brake
XY axis motor: 400W Servo motor
Spindle: Blet Drive BT30 6000rpm
Spindle Motor:1.8KW 14N 3000RPM
Tool Magazine:12pcs Tool Library
Coolant:Water Pump
Support Software:Powermill,UG etc
Cutting Material:Brass, Steel,Aluminum
Weight:680kg
