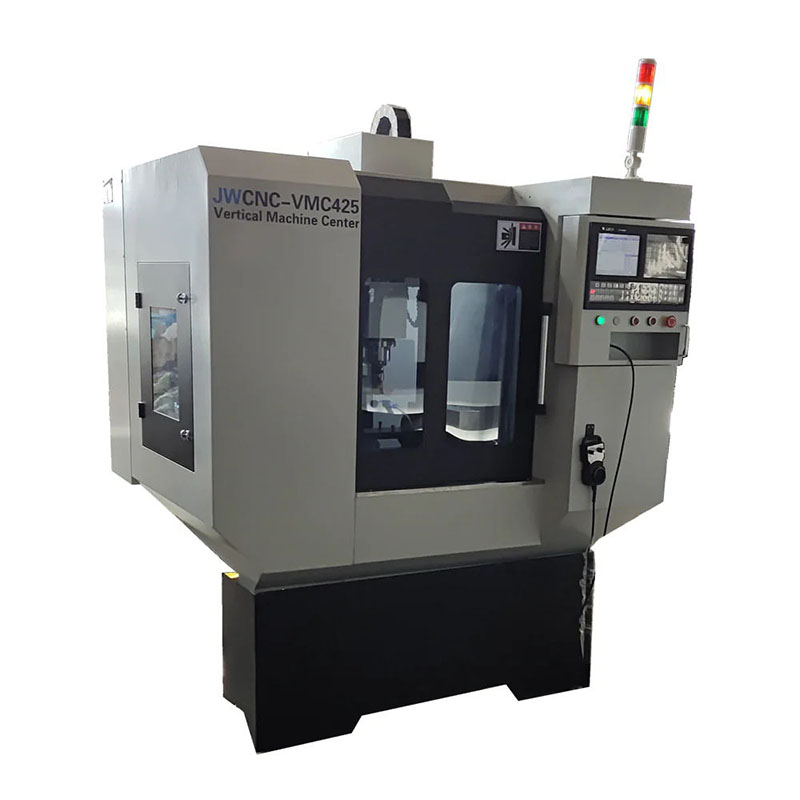

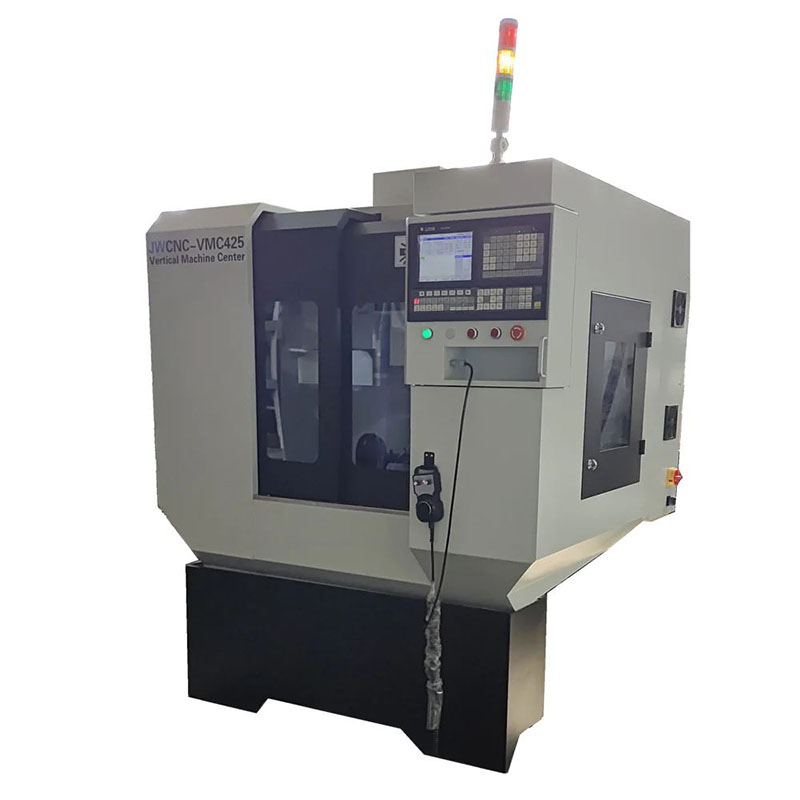

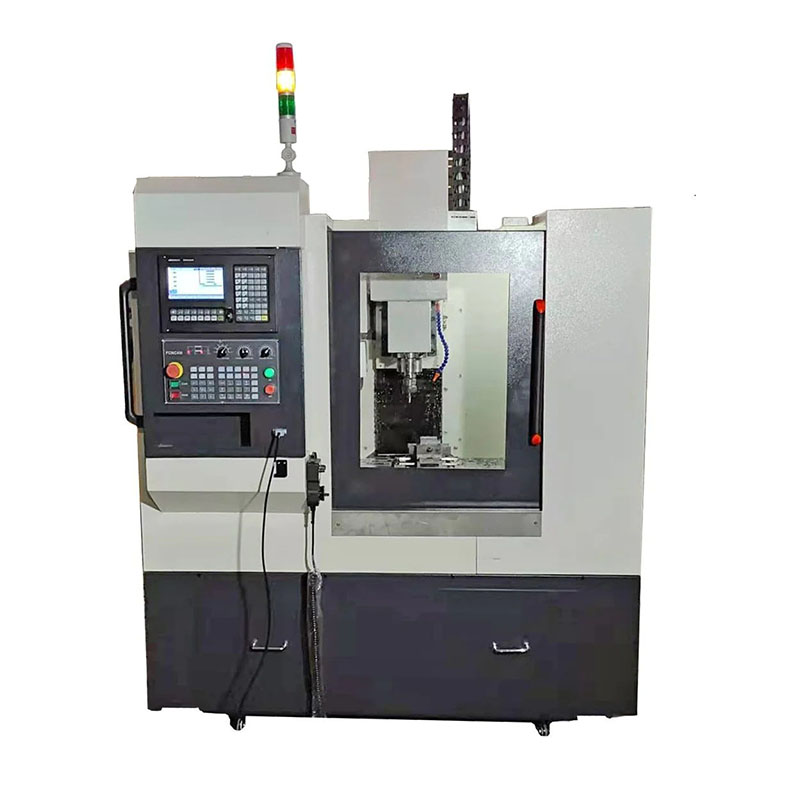

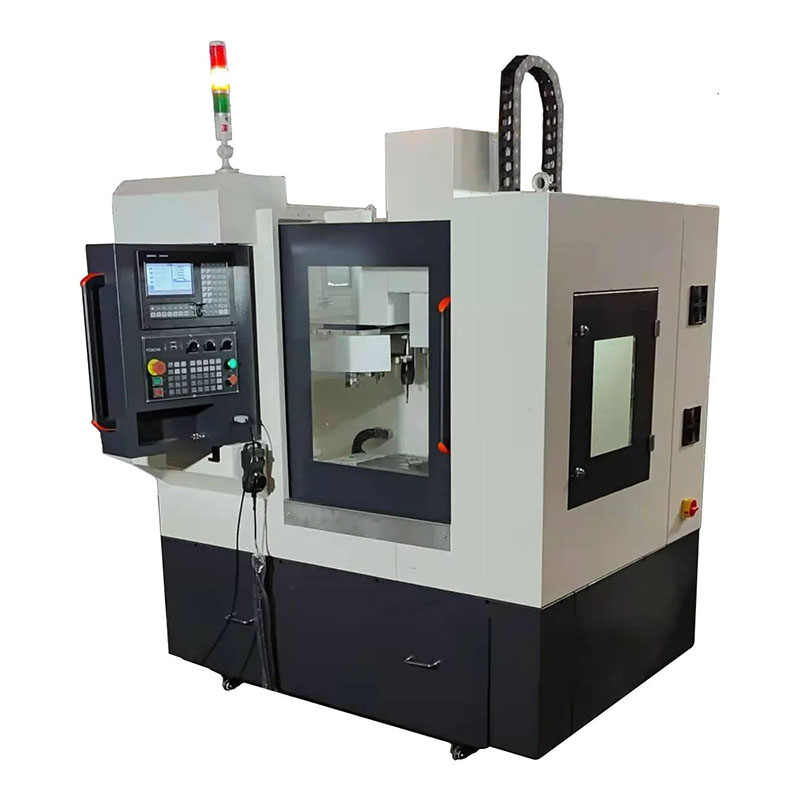

VMC425 Cnc Milling Machine For Metal With Bt30 Belt Spindle With Automatic Tool Changer

VMC425 Cnc Milling Machine For Metal With Bt30 Belt Spindle With Automatic Tool Changer

product display: Technical Parameters XYZ Stroke:400*250*350mm XYZ Rail:Hiwin X20 YZ25 guide rail XYZ Ball Screw : TBI XY2005 Z2505 Worktable Size: 630*230mm Machine Dimension:1.6*1.2*1.9m X/Y/Z Verticality:+/- 0.01mm/200mm Repeatability:0.

product display:


Technical Parameters

· XYZ Stroke:400*250*350mm

· XYZ Rail:Hiwin X20 YZ25 guide rail

· XYZ Ball Screw : TBI XY2005 Z2505

· Worktable Size: 630*230mm

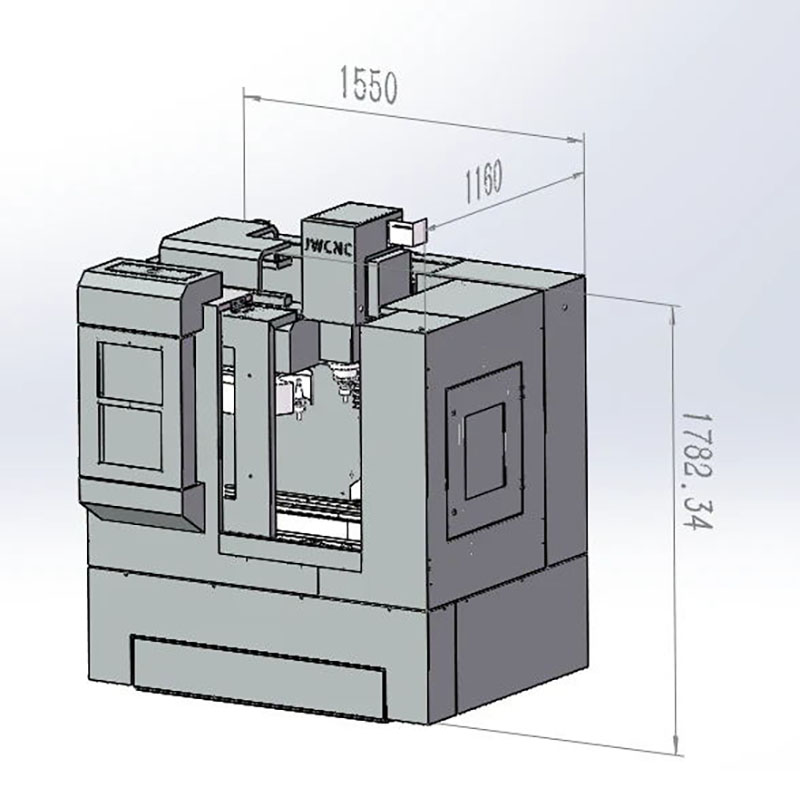

· Machine Dimension:1.6*1.2*1.9m

· X/Y/Z Verticality:+/- 0.01mm/200mm

· Repeatability:0.01mm

· CNC Controller: KYCNC 1000MC

· Z axis Motor: 2kw Servo With brake

· XY axis motor: 750W Servo motor

· Spindle: Blet Drive BT30 8000rpm

· Spindle Motor:2.2KW14N 800ORPM

· Tool Magazine:12pcs Tool Library

· Coolant:Water Pump

· Support Software:Powermill,UG etc

· Cutting Material:Brass,Steel,Aluminum

· Weight:1100kg/2425lbs
