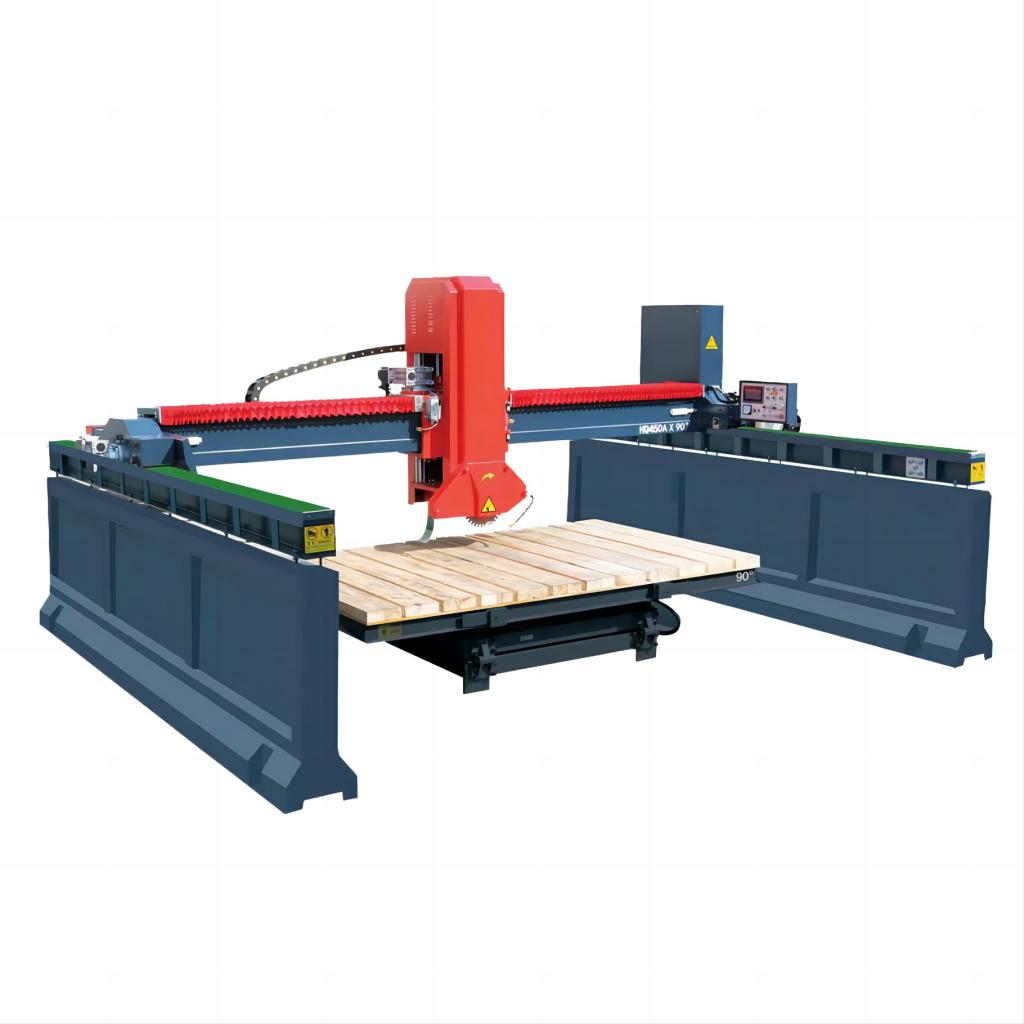

This machine adopts microcomputer control, touch-type operation pannel, and man-machine dialogue is flexible.
The main control components are all international famous brand components, the cross-beam adopts oil-immersed double V-shaped track, the transverse pass adopts stepless speed regulation, and the longitudinal splitting mechanism adopts double mountain-shaped guide rail combined with high-precision encoder counting to ensure the machine working precision.
Standard with 0-90 workbench, 0-85 degree flap, mainly used to cut high-precision specification board.
Optional with 360-degree rotation for automatic positioning with every 45 degrees, mainly used for cutting Rectangle, octagon, arc and prefect circle.
specifications.
Type | Unit | HQ450A | HQ600A | HQ700A | HQ800A |
Max.working dimension (L×W×H) |
inch | 160*78*4 | 160*78*7 | 160*78*9 | 160*78*11 |
Max.diameter of blade |
inch | Φ14-Φ18 | Φ14-Φ23 | Φ14-Φ27 | Φ20-Φ31 |
Max.vertical stroke |
inch | 9 | 15 | 19 | 23 |
Table dimensions (L×W) |
inch | 126x78 | 126x78 | 126x78 | 126x78 |
Table tilting degree |
n° | 0-85 | 0-85 | 0-85 | 0-85 |
Table rotating degree |
n° | 0-90/360 | 0-90/360 | 0-90/360 | 0-90/360 |
Main motor power |
kw | 15 | 18.5 | 18.5 | 18.5 |
Total power | kw | 21 | 24.5 | 24.5 | 24.5 |
Water consumption |
m³/h |
4 | 4 | 4.5 | 4.5 |
Overall dimensions (L×W×H) |
inch | 236*189*118 | 236*189*126 | 236*197*134 | 236*197*142 |
Gross weight | kg | 5400 | 5600 | 5800 | 6000 |
