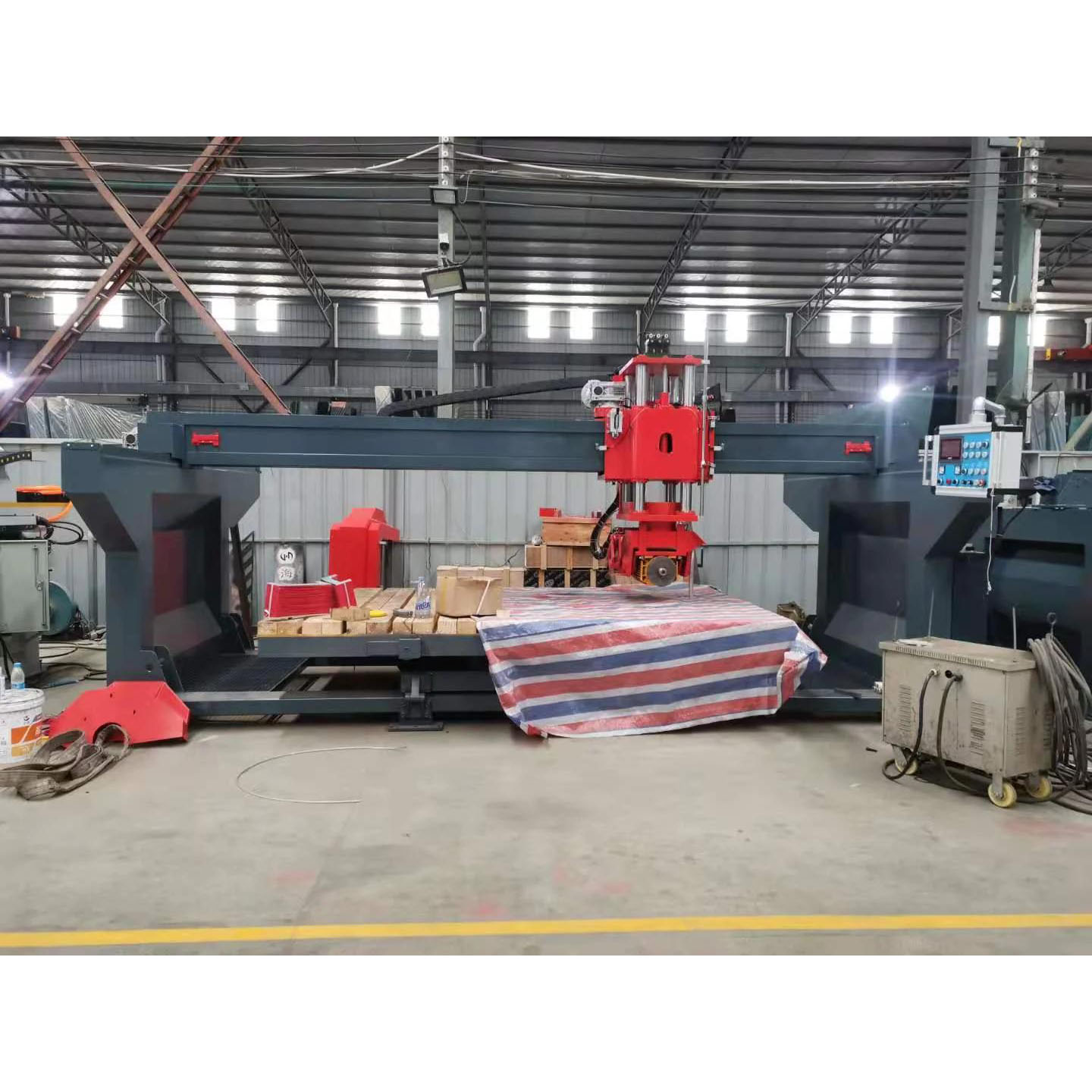

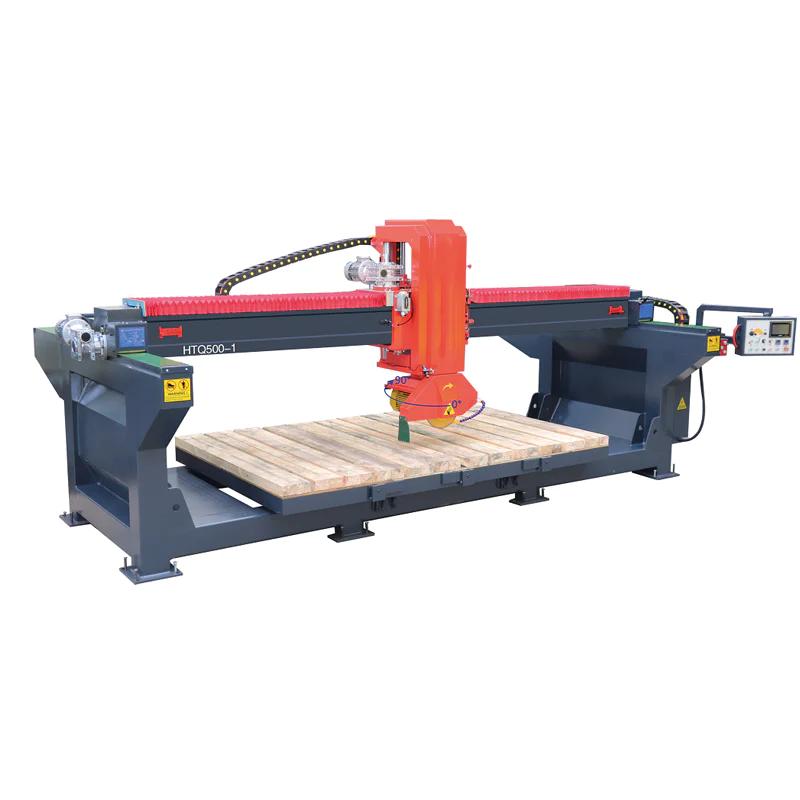

Integrated infrared Stone Bridge Saw Cutting Machine

Integrated infrared Stone Bridge Saw Cutting Machine

product display:

product display:




Stone Cutting Machine ,Bridge Saw Cutter,Granite cutter, Marble Cutter

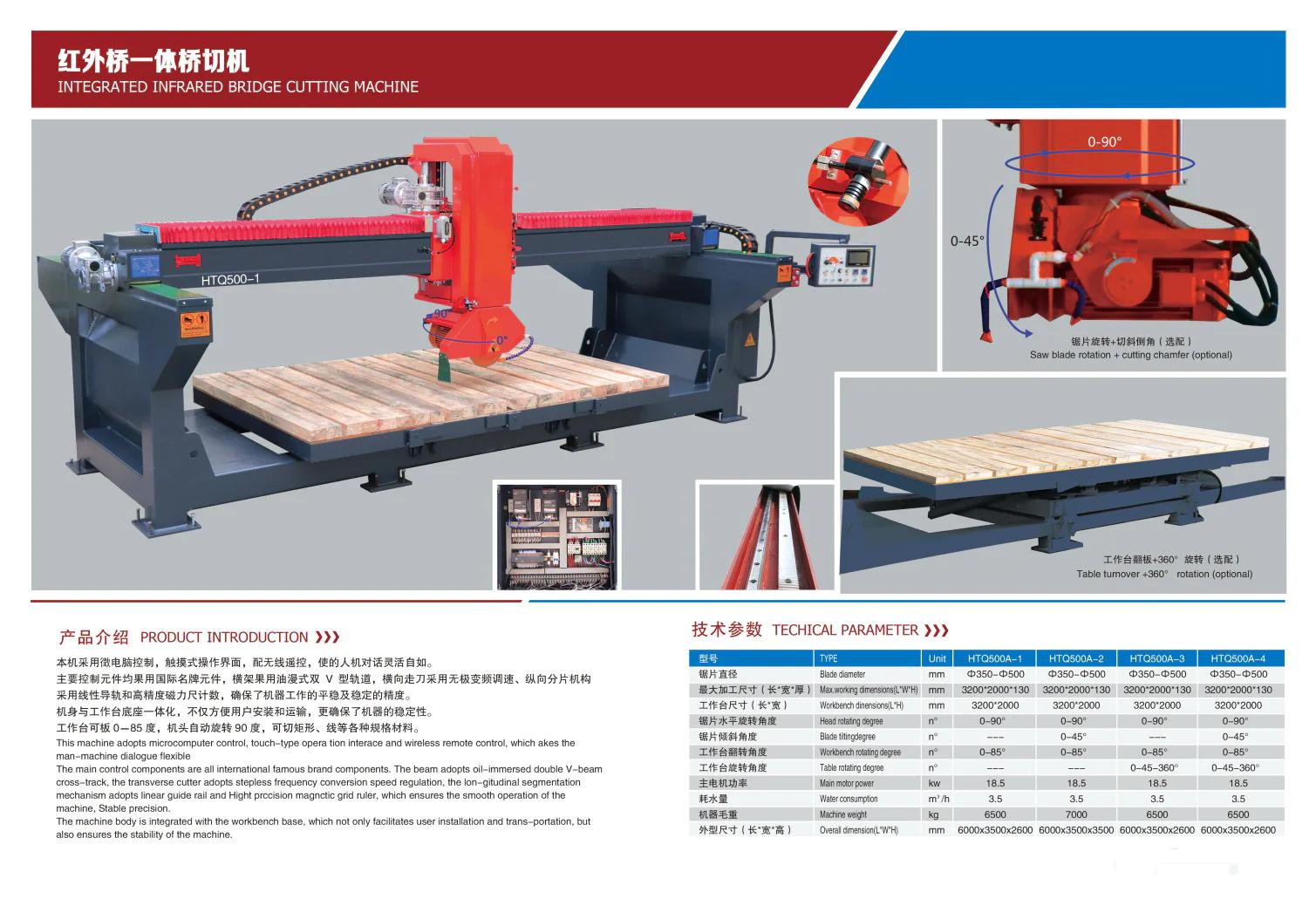

This machine adopts microcomputer control, touch-type operation interface and wireless remote control, which makes the man-machine dialogue flexible.
The main control components are all international famous brand components, The beam adopts oil-immersed double V-beam cross-track, the transverse cutter adopts stepless frequency conversion speed regulation, the longitudinal segmentation mechanism adopts linear guide rail and high-precision encoder counting, which ensure the smooth operation of the machine. Stable precision.
The machine body is integrated with the workbench base, which not only facilitates user installation and transportation, but also ensure the stability of the machine.

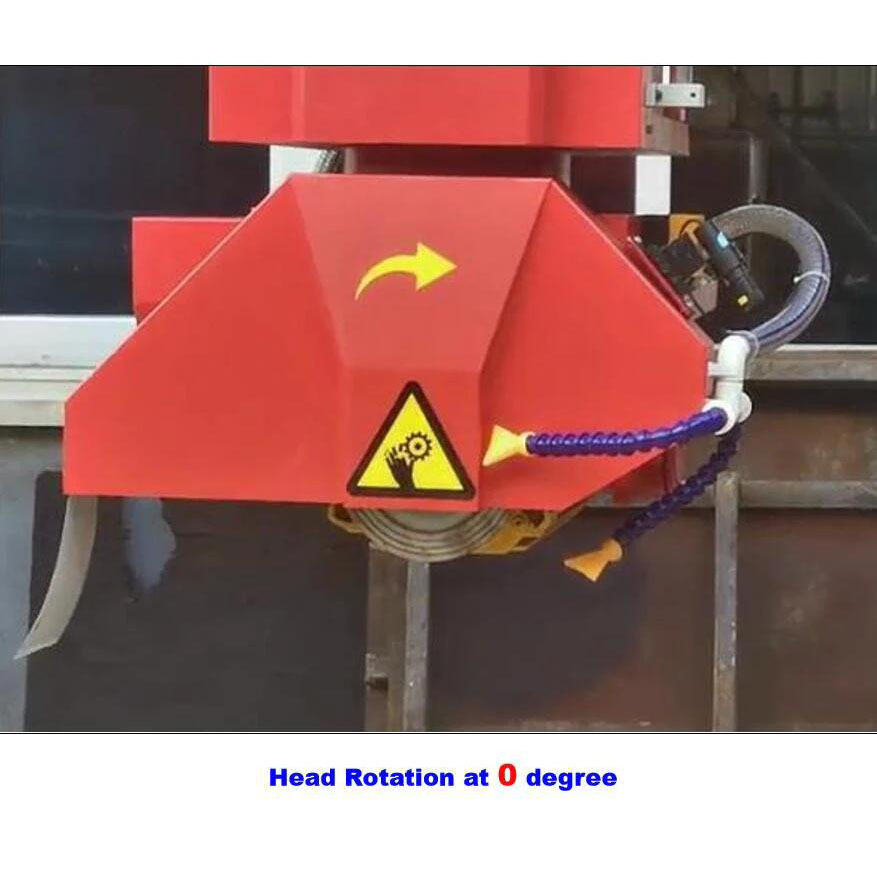

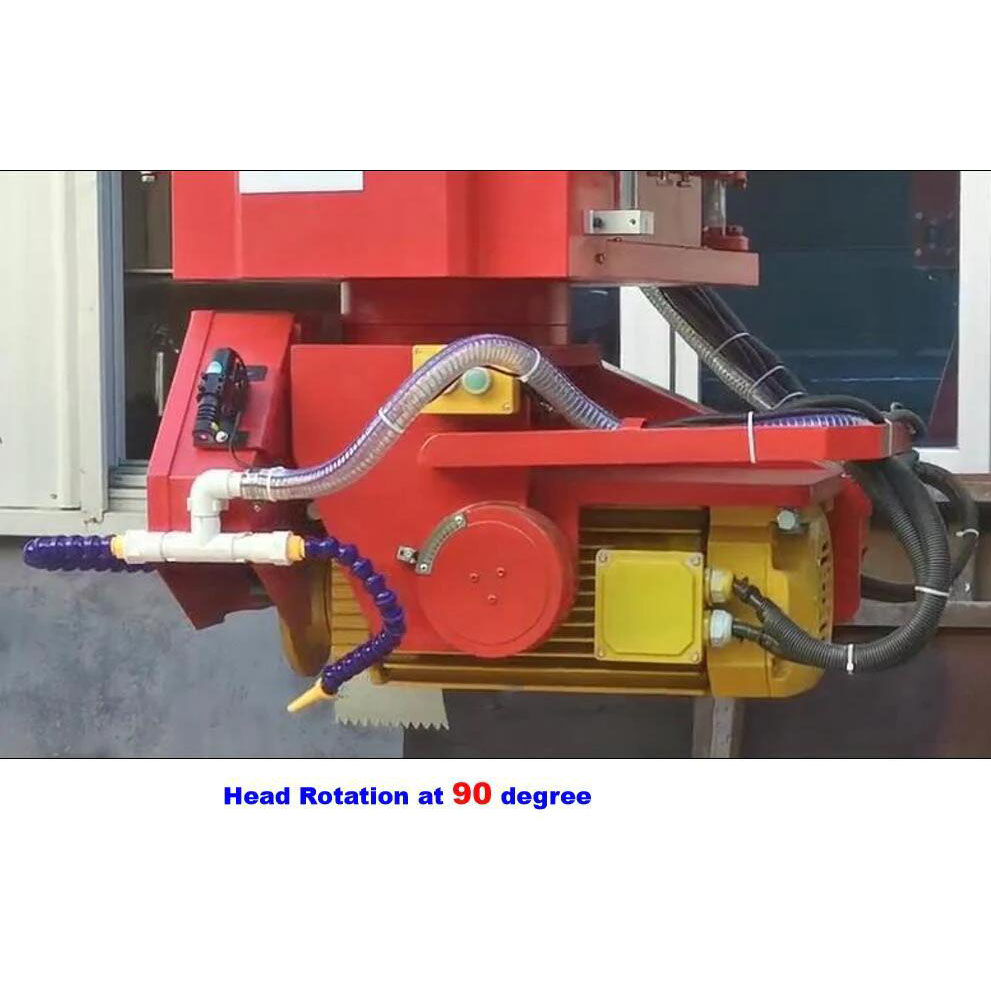

The worktable can be turned 0-85 degree, the machine head automatically rotates 90 degrees, and can cut rectangular, line and other specifications.

Type Unit HTQ500A
Blade diameter inch Φ14-Φ20
Max. Workingdimension(LxWxH) inch 126x78x5
Worktable size (LxW) inch 126x78
Head rotating degree 0-90°
Blade tilting degree 0-45°(Optional)
Workbench rotation degree 0-85°
Table rotating degree 0-45-360°(Optional)
Main motor power kw 18.5
Water consumption m³/h 35
Machine weight kg 6500
Overall dimension(LxWxH) inch 236x138x102
