Stone Processing Center. Stone carving machine

Stone Processing Center

Stone Processing Center

Technical parameters: Model No. JX- 3 015 Processing Length 3000MM Processing Width 1500MM Working Thickness < =3 5MM Max traverse speed 25000mm/min Max working speed 15000mm/min S pindle Taiwan mechan ical spindle Milling Cutter Diameter

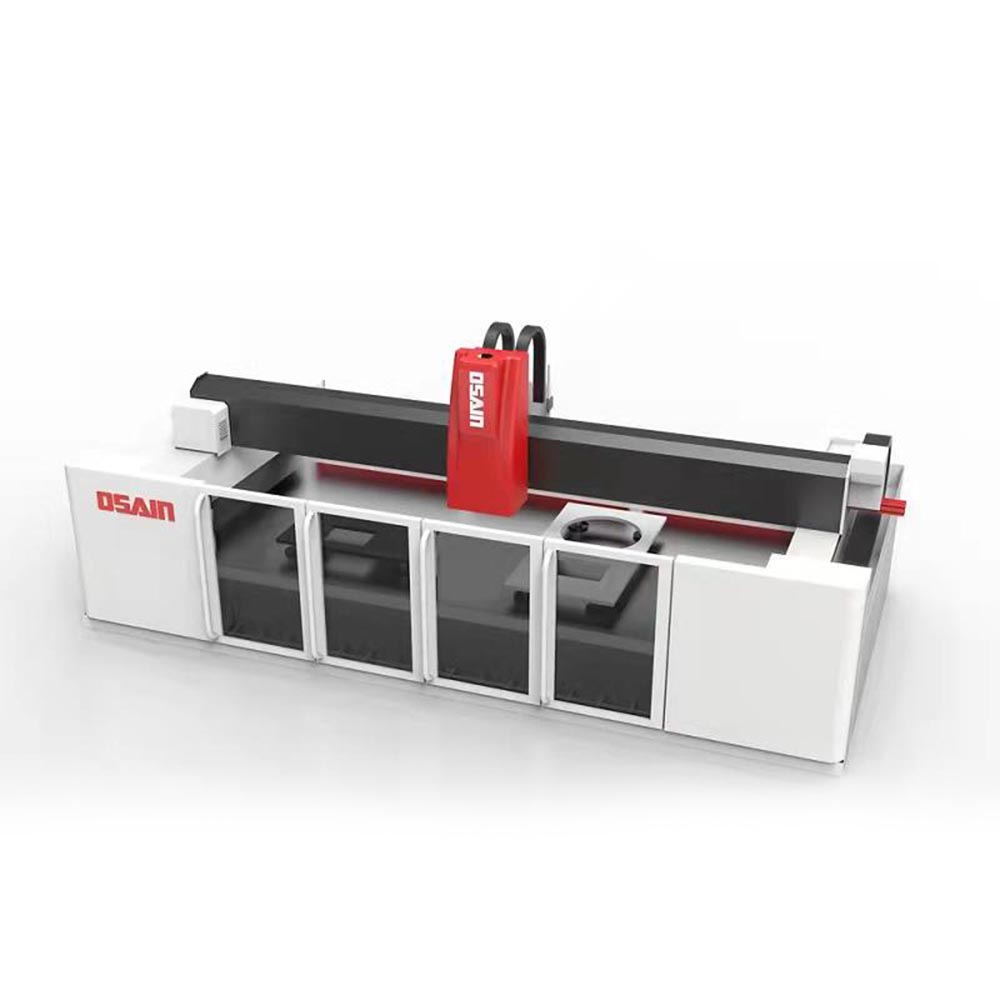

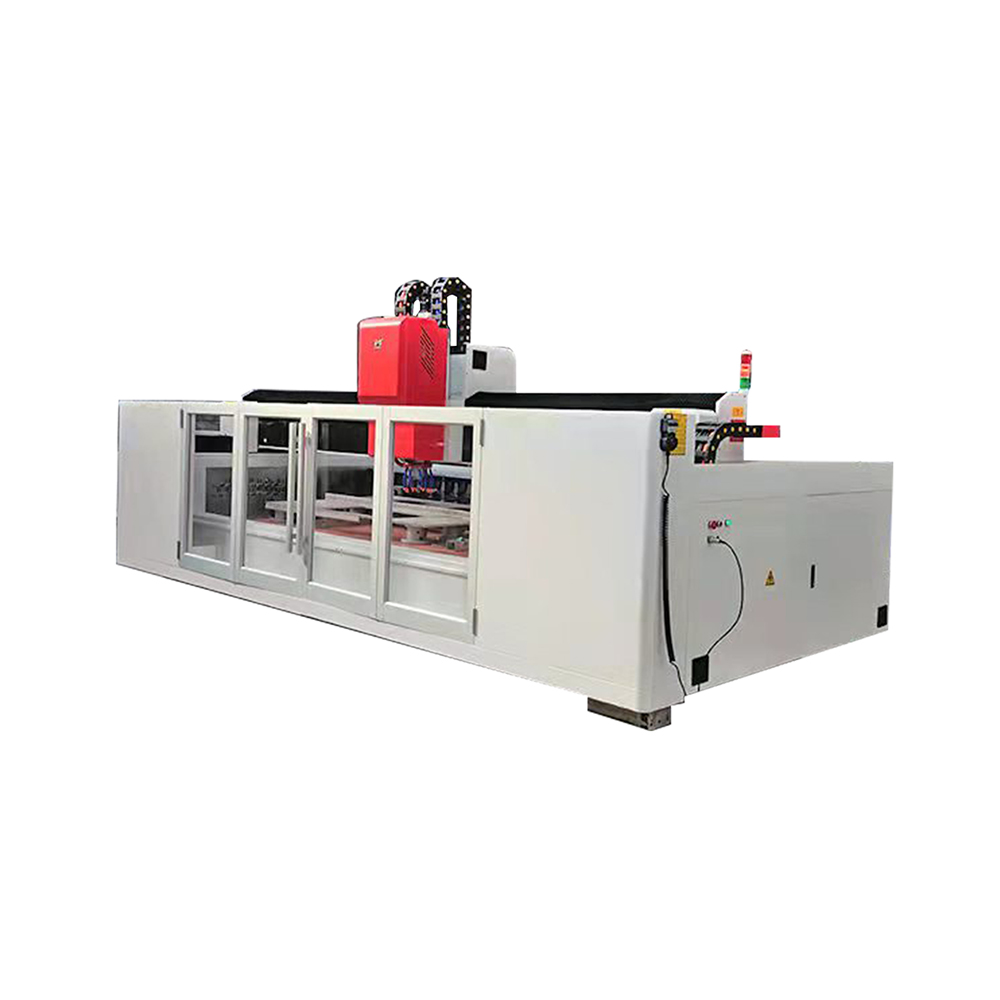

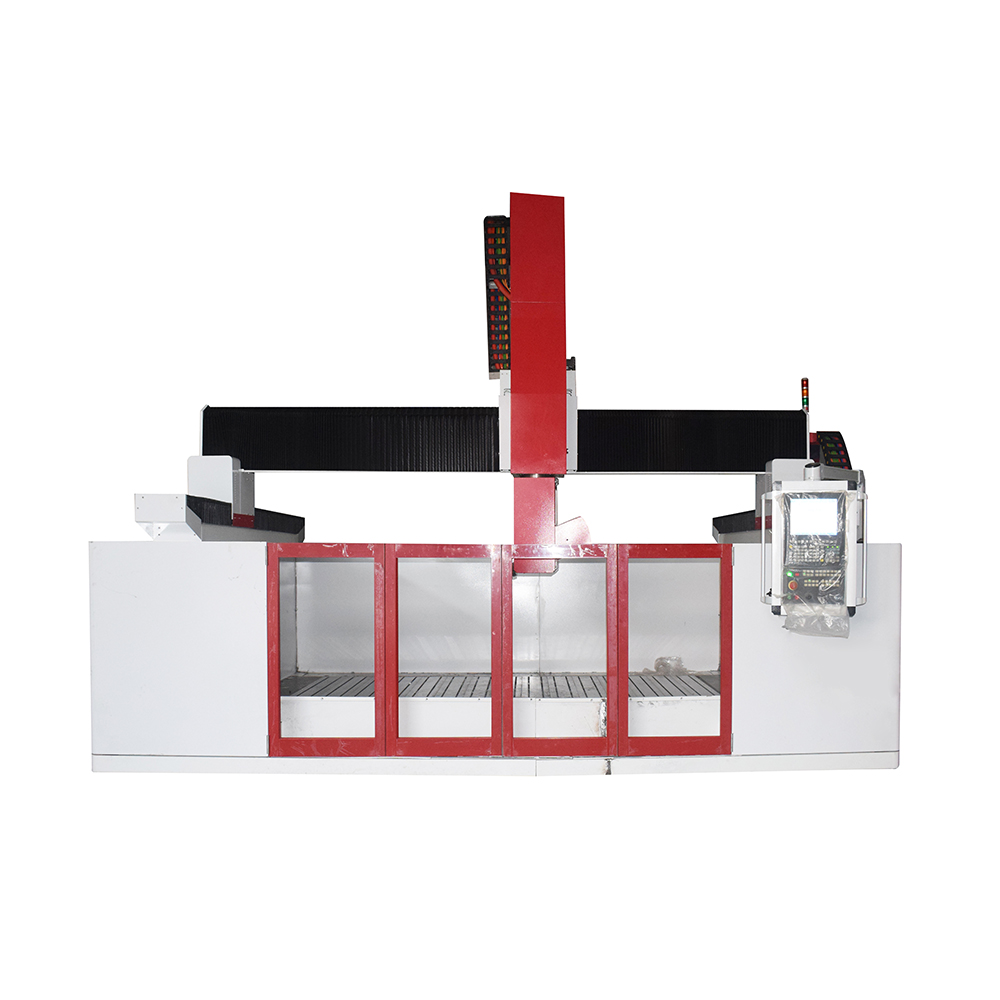

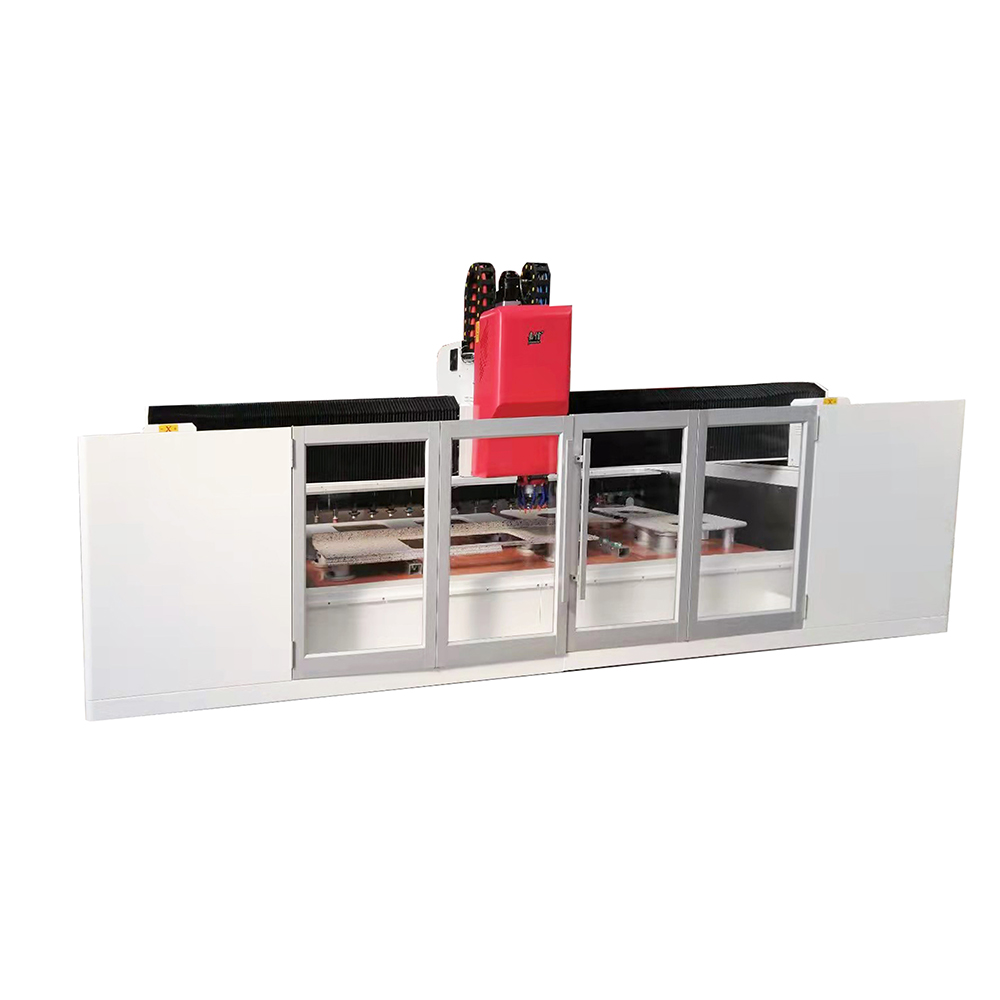

product display:



Technical parameters:


Model No.

JX- 3015

Processing Length

3000MM

Processing Width

1500MM

Working Thickness

=35MM

Max traverse speed

25000mm/min

Max working speed

15000mm/min

Spindle

Taiwan mechanical spindle

Milling Cutter Diameter

Φ10-Φ25MM

Drilling Wheel Diameter

Φ10-Φ50MM

Shaping Wheel Diameter

Φ60-Φ80MM

Polishing Wheel Diameter

Φ50-Φ100MM

Main Motor Power

11KW

Total Power

About 18 kw

Main Electrical Apparatus

Schneider,OMRON

Max traverse speed

25000mm/min

Max working speed

15000mm/min

Spindle

Taiwan Mechanical spindle

Spindle speed

1500-8000RPM

Tool magazine

16pcs

Working voltage

AC380V/220v

Command language

CAD to G code

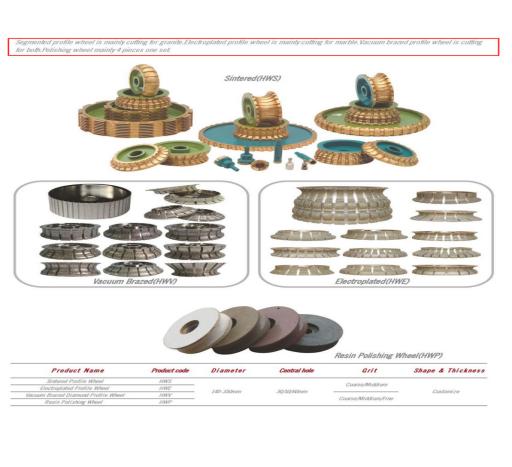

Diamond Tools: any shape tools you can customize:

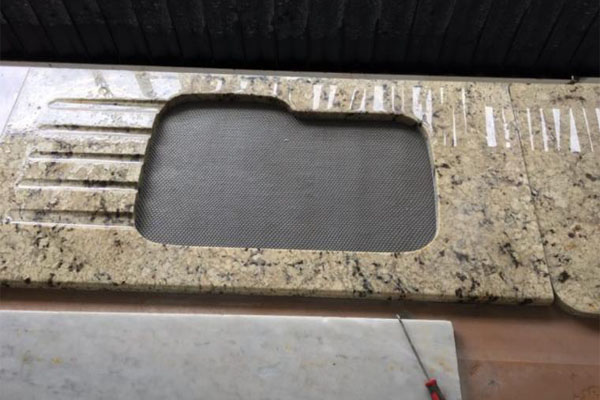

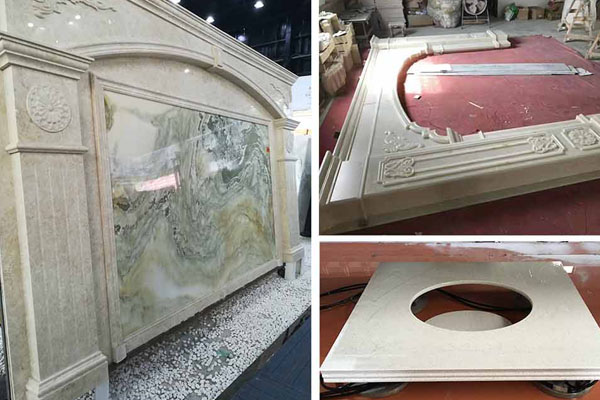

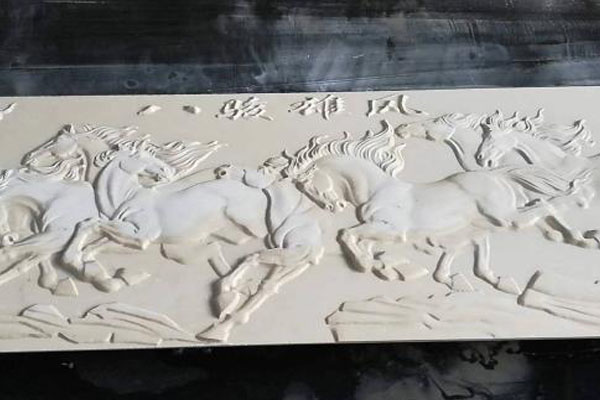

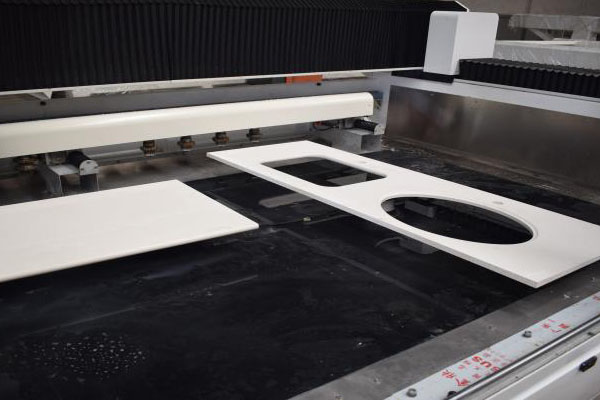

finished product display:


Video display:
